Data

Data Source: https://www.kaggle.com/c/dogs-vs-cats/data

The training archive contains 25,000 images of dogs and cats. Train your algorithm on these files and predict the labels for test1.zip (1 = dog, 0 = cat).

Data preview

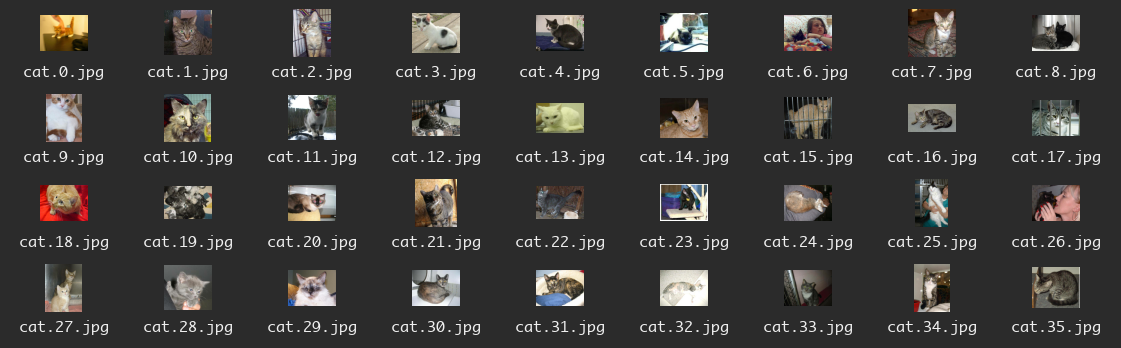

Train Data

Training data

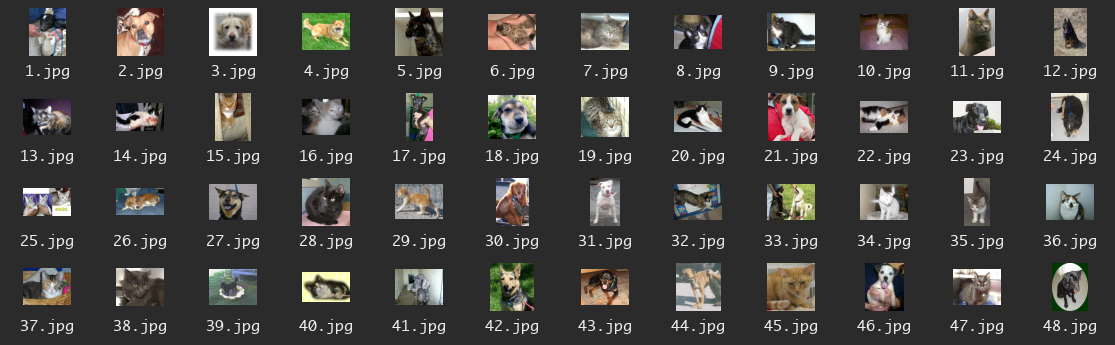

Test Data

Teset data

Preprocessing

import cv2
import numpy as np
import os
from random import shuffle
from tqdm import tqdm
TRAIN_DIR = 'train'
TEST_DIR = 'test1'
IMG_SIZE = 100
LR = 0.001
MODEL_NAME = 'dogsvscats-{}-{}.model'.format(LR, '4conv-basic')

Conversion to one-hot array [cat,dog]:
- ‘Dog’ <=> [0,1]
- ‘Cat’ <=> [1,0]

def label_img(img):
    word_label = img.split('.')[0]
    if word_label == 'cat': return [1,0]
    elif word_label == 'dog': return [0,1]

Function that converts the data for us into array data of the image and its label.
When we’ve gone through all of the images, we shuffle them, then save them.

def create_train_data():
    training_data = []
    for img in tqdm(os.listdir(TRAIN_DIR)):
        label = label_img(img)
        path = os.path.join(TRAIN_DIR,img)
        img = cv2.imread(path,-1) #1 for color, 0 for grayscale, -1 for unchanged
        img = cv2.resize(img, (IMG_SIZE,IMG_SIZE))
        training_data.append([np.array(img),np.array(label)])

    shuffle(training_data)
    np.save('train_data.npy', training_data)
    return training_data

def create_test_data():
    testing_data = []
    for img in tqdm(os.listdir(TEST_DIR)):

        path = os.path.join(TEST_DIR,img)
        img_num = img.split('.')[0]
        img = cv2.imread(path ,-1)
        img = cv2.resize(img, (IMG_SIZE,IMG_SIZE))
        testing_data.append([np.array(img), img_num])

    shuffle(testing_data)
    np.save('test_data.npy', testing_data)
    return testing_data

Create train and test(not for the model but for the verification of the model) data.

train_data = create_train_data()
test_data = create_test_data()

Split train and test data :
- train data 80% of data
- test data 20% of data

train_data = np.load('train_data.npy')
train = train_data[:20000]
test = train_data[20000:]

Let’s check the data shape.

train.shape,test.shape

Out[]: ((20000, 2), (5000, 2))

Define input and output for train and test data

train_x = np.array([i[0] for i in train]).reshape(-1,IMG_SIZE,IMG_SIZE,3)
train_y = [i[1] for i in train]
test_x = np.array([i[0] for i in test]).reshape(-1,IMG_SIZE,IMG_SIZE,3)
test_y = [i[1] for i in test]

Define CNN model

import tensorflow as tf
import tflearn
from tflearn.layers.conv import conv_2d, max_pool_2d
from tflearn.layers.core import input_data, dropout, fully_connected
from tflearn.layers.estimator import regression
tf.reset_default_graph()
convnet = input_data(shape=[None, IMG_SIZE, IMG_SIZE, 3], name='input')
convnet = conv_2d(convnet, 32, 5, activation='relu')
convnet = max_pool_2d(convnet, 5)
convnet = conv_2d(convnet, 64, 5, activation='relu')
convnet = max_pool_2d(convnet, 5)
convnet = conv_2d(convnet, 128, 5, activation='relu')
convnet = max_pool_2d(convnet, 5)
convnet = conv_2d(convnet, 64, 5, activation='relu')
convnet = max_pool_2d(convnet, 5)
convnet = conv_2d(convnet, 32, 5, activation='relu')
convnet = max_pool_2d(convnet, 5)
convnet = fully_connected(convnet, 1024, activation='relu')
convnet = dropout(convnet, 0.8)
convnet = fully_connected(convnet, 2, activation='softmax')
convnet = regression(convnet, optimizer='adam', learning_rate=LR, loss='categorical_crossentropy', name='targets')
model = tflearn.DNN(convnet, tensorboard_dir='log')

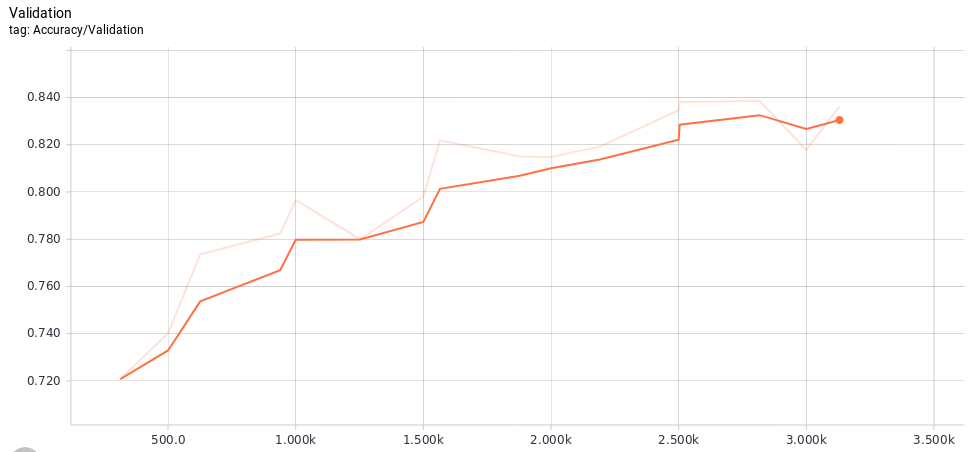

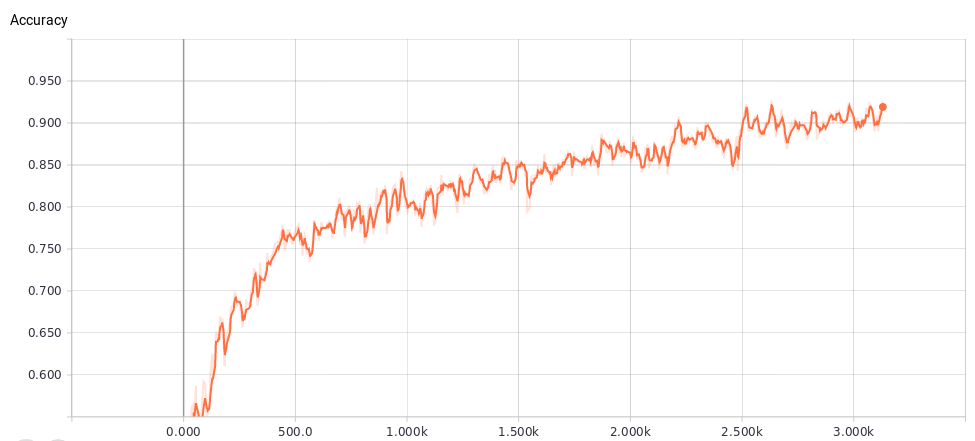

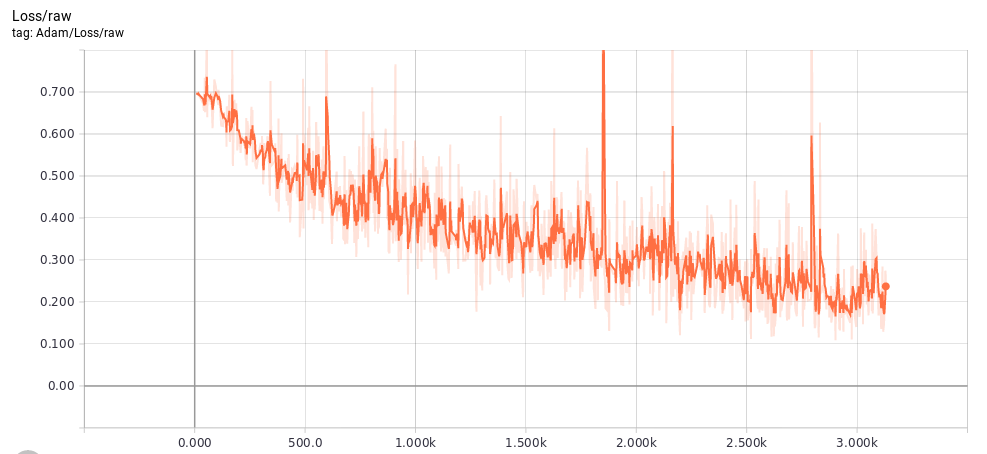

Save the logs for tensorboard

if os.path.exists('log/{}.meta'.format(MODEL_NAME)):
    model.load(MODEL_NAME)
    print('model loaded!')

Fit the model

model.fit({'input': train_x}, {'targets': train_y}, n_epoch=10, validation_set=({'input': test_x}, {'targets': test_y}),
    snapshot_step=500, show_metric=True, run_id=MODEL_NAME)

Training Step: 3129  | total loss: 0.19341 | time: 226.028s
| Adam | epoch: 010 | loss: 0.19341 - acc: 0.9212 -- iter: 19968/20000
Training Step: 3130  | total loss: 0.20136 | time: 245.376s
| Adam | epoch: 010 | loss: 0.20136 - acc: 0.9181 | val_loss: 0.46174 - val_acc: 0.8362 -- iter: 20000/20000
--

Save the model

model.save(MODEL_NAME)

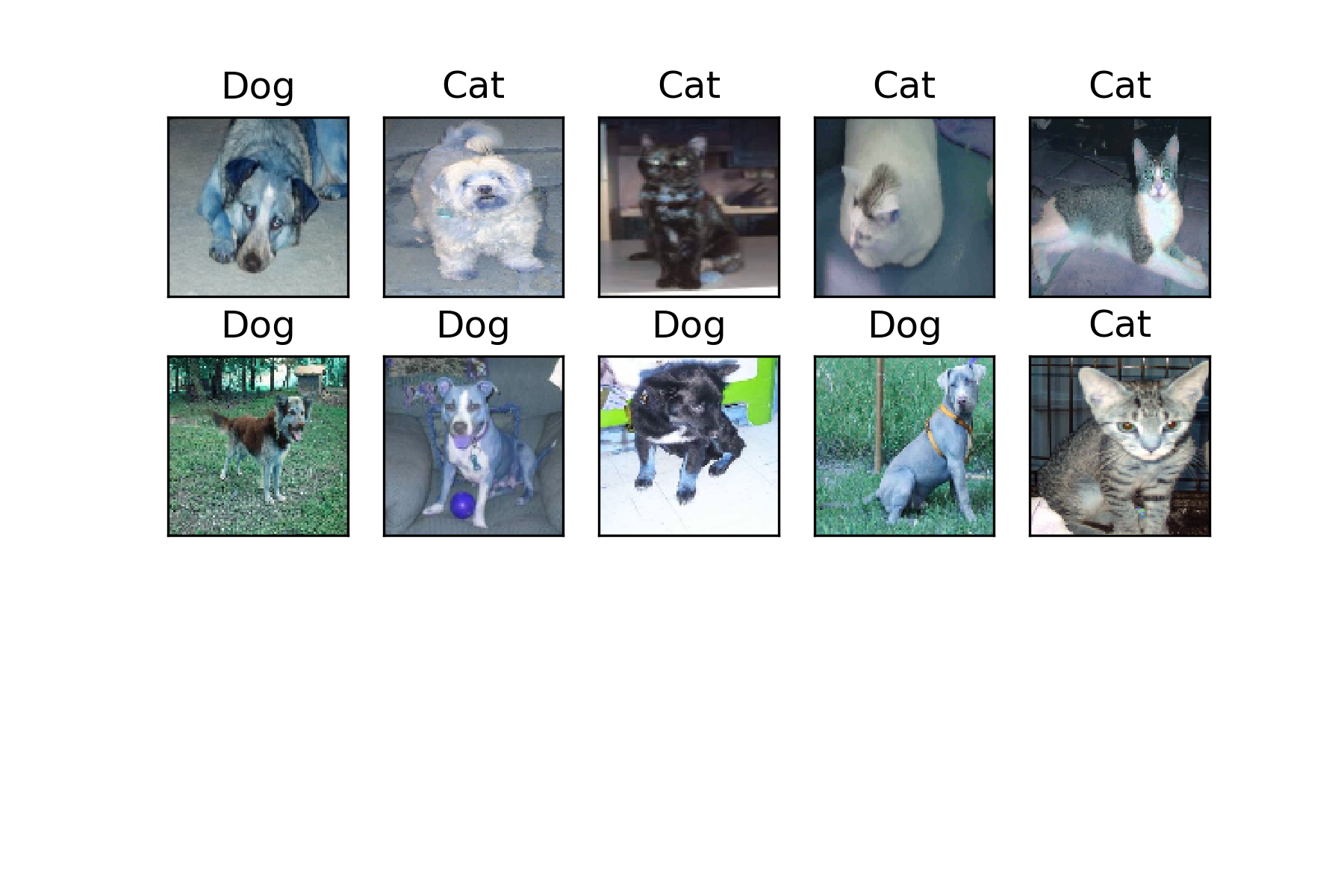

Test the model on unlabeled test data

Load unlabeled data

test_data = np.load('test_data.npy')

import matplotlib.pyplot as plt
fig=plt.figure()
for num,data in enumerate(test_data[:10]):
    # cat: [1,0]
    # dog: [0,1]
    img_num = data[1]
    img_data = data[0]

    y = fig.add_subplot(3,5,num+1)
    orig = img_data
    data = img_data.reshape(IMG_SIZE,IMG_SIZE,3)
    model_out = model.predict([data])[0]

    if np.argmax(model_out) == 1: str_label='Dog'
    else: str_label='Cat'

    y.imshow(orig)
    plt.title(str_label)
    y.axes.get_xaxis().set_visible(False)
    y.axes.get_yaxis().set_visible(False)
plt.show()
fig.savefig('test.png', format='png', dpi=300)
